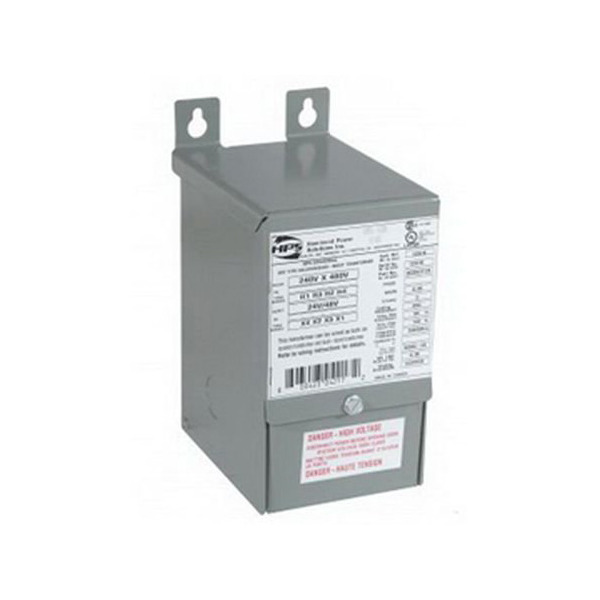

Dry Type Transformer; Encapsulated; 2 kVA; 240 X 480 VAC; 1 Phase

Mfr: HAMMOND POWER SOLUTIONS

UPC: 80342309073

Catalog #: C1F002LES

Item #: HAMPS C1F002LES

IN STOCK

OVERVIEW

HPS FortressTM is an innovative design that provides the ideal solution for commercial applications where quality, ease of installation, and low cost are key.

All units are encapsulated with electrical grade silica sand and resin compounds, which completely enclose the core and coil to seal out moisture, airborne contaminants and eliminates corrosion and deterioration.

Single Phase ratings from 50VA to 37.5kVA
Three Phase ratings from 2kVA to 75kVA.
60 Hz frequency (50/60 Hz on four single phase voltage groups)
Primary volts: 120 x 240, 208 x 416, 120/208/240/277, 240 x 480, 277, 277/480, 347/380, 600
Export model: 190/200/208/220/240x380/400/416/440/480
CSA and UL listed
Electrostatic shield standard on all three phase units and single phase units from 750VA and up.
Custom sizes, ratings and styles available upon request

SPECIFICATIONS

SPECIFICATIONS

Overview

HPS FortressTM is an innovative design that provides the ideal solution for commercial applications where quality, ease of installation, and low cost are key.

Single Phase ratings from 50VA to 37.5kVA
Three Phase ratings from 2kVA to 75kVA.
60 Hz frequency (50/60 Hz on four single phase voltage groups)
Primary volts: 120 x 240, 208 x 416, 120/208/240/277, 240 x 480, 277, 277/480, 347/380, 600
Export model: 190/200/208/220/240x380/400/416/440/480
CSA and UL listed
Electrostatic shield standard on all three phase units and single phase units from 750VA and up.
Custom sizes, ratings and styles available upon request

Local Description

240/480V-P 120/240V-S 1PH 2KVA 3R

Power, Rating

2 kVA

Voltage, Primary

240 X 480 VAC

Phase

1 Phase

Voltage, Secondary

120/240 VAC

IP|NEMA Rating

NEMA 3R

Dimensions

11.75 H X 7 W X 6.5 D In.

Frequency

60 Hz.

Approvals

UL, CSA
